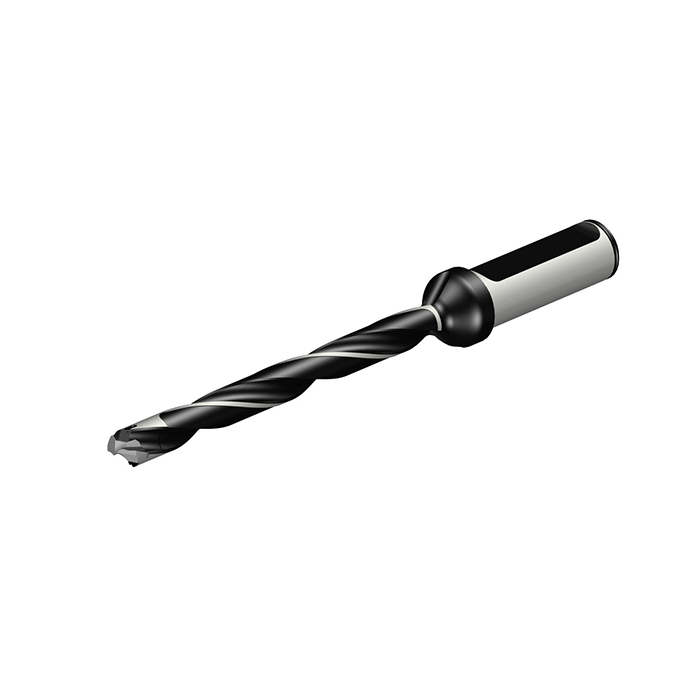

Sandvik 870-1000-6L16-10 CoroDrill 870 Exchangeable Tip Drill Body
Brand: SANDVIK Coromant
Model: 87010006L1610
- Premium Performance, Exceptional Value.
- Engineered for Efficiency, Dedicated to Your Output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 87010006L1610 |
| Article Number | 87010006L1610 |
| Brand | SANDVIK |
| ISO Designation | 870-1000-6L16-10 |
| EAN Code | 26341251 |
| Torque | 0.6 Nm |
| Weight | 0.1729 kg |
| Overall Length | 170 mm |
| SSC Code M | 6 |
| SSC Code N | 6 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 87010006L1610 |
| Article Number | 87010006L1610 |
| Brand | SANDVIK |
| ISO Designation | 870-1000-6L16-10 |
| EAN Code | 26341251 |
| Torque | 0.6 Nm |
| Weight | 0.1729 kg |
| Overall Length | 170 mm |
| SSC Code M | 6 |
| SSC Code N | 6 |
Sandvik 870-1000-6L16-10
10xD Depth
Exchangeable Tip
H10 Tolerance
High-Efficiency Holemaking Logic
The 870-1000-6L16-10 is a specialized drill body from the CoroDrill® 870 series, engineered for deep Holemaking. Its Machining Logic focuses on a revolutionary tip-to-body interface that maximizes Clamping Force, ensuring the drill tip remains secure under high torque. This 10xD version is specifically designed to maintain Stability and hole straightness in challenging deep-bore operations. With integrated axial coolant channels, it provides superior Chip Evacuation to prevent chip jamming and tool failure.
⚙ Technical Specifications
| Technical Parameter | Detailed Value |
|---|---|
| Drilling Depth Ratio (ULDR) | 10.24 (10xD) |
| Cutting Diameter Range (DC) | 10.00 – 10.49 mm |
| Shank Diameter (DCONMS) | 16 mm (ISO 9766) |
| Usable Length (LU) | 106.52 mm |
| Overall Length (OAL) | 170 mm |
| Insert Seat Size (SSC) | Size 6 |
🔥 Performance Advantages
- ✔
High-Pressure Coolant: Supports up to 30 bar pressure for effective Chip Evacuation in deep holes. - ✔
Enhanced Stability: The symmetrical point design ensures high Stability and H10 hole tolerance. - ✔
Reliable Systems: Fully compatible with high-torque Tooling Systems.
Technical FAQ
Q: Which insert tip matches this body?
A: Use CoroDrill 870-1040-6-PM or similar Size 6 tips.
Q: Can I use this in a standard chuck?
A: It requires an ISO 9766 compatible Tool Holder for secure clamping.
🔁 CoroDrill® 870 Verified Family
8xD drilling depth version – Increased Stability for medium depths.
3xD drilling depth version – Maximum rigidity and Clamping Force.
11mm diameter (Size 8) 10xD version for larger hole requirements.
Steel machining insert tip optimized for the Size 6 Insert Seat.
