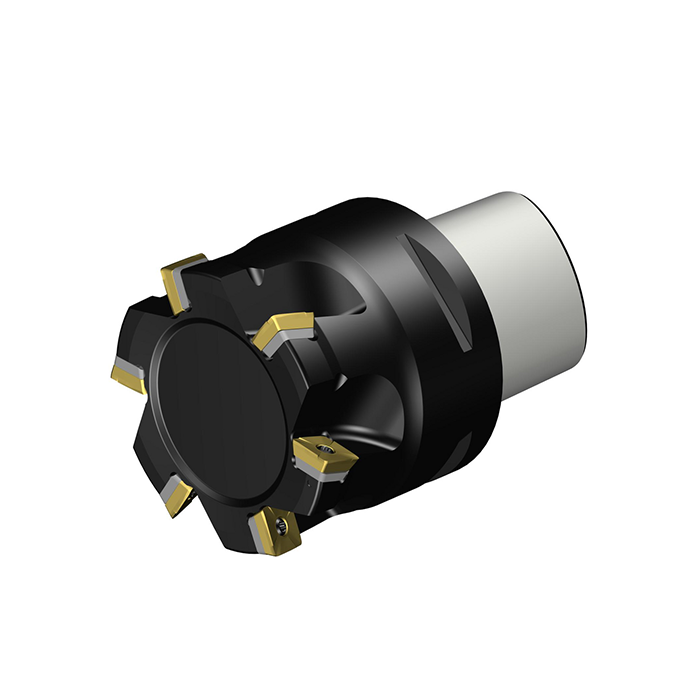

Sandvik 490-084C8-14M CoroMill 490 Capto C8 Face Milling Cutter
Brand: SANDVIK Coromant
Model: 490084C814M
- Premium Performance, Exceptional Value.
- Engineered for Efficiency, Dedicated to Your Output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 490084C814M |
| Article Number | 490084C814M |
| Brand | SANDVIK |
| ISO Designation | 490-084C8-14M |
| EAN Code | 25829359 |
| Cutting Direction | Right |
| Torque | 3 Nm |
| Weight | 3.019 kg |
| Overall Length | 118 mm |
| Depth of Cut | 10 mm |
| SSC Code M | 14 |
| SSC Code N | 14 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 490084C814M |
| Article Number | 490084C814M |
| Brand | SANDVIK |
| ISO Designation | 490-084C8-14M |
| EAN Code | 25829359 |
| Cutting Direction | Right |
| Torque | 3 Nm |
| Weight | 3.019 kg |
| Overall Length | 118 mm |
| Depth of Cut | 10 mm |
| SSC Code M | 14 |
| SSC Code N | 14 |
Sandvik 490-084C8-14M CoroMill 490 Capto C8
DC: 84mm
Quick Change Integration
Multi-Tasking Optimized
Advanced Capto Machining Logic
The 490-084C8-14M is a premium face milling solution designed for high-performance CNC environments. By integrating the Coromant Capto® C8 interface directly into the cutter body, this tool eliminates the need for separate adaptors, thereby maximizing Stability and reducing total run-out. Its Machining Logic is tailored for multi-tasking machines and modern machining centers where quick-change efficiency and high Dynamic Rigidity are paramount. The 14M Insert Seat design ensures that even during heavy-duty 90-degree shoulder milling in tough alloy steels, the Clamping Force remains constant, providing a high surface finish and repeatable precision.
⚙ Technical Specifications
| Technical Parameter | Detailed Value |
|---|---|
| Cutting Diameter (DC) | 84 mm |
| Coupling Interface | Coromant Capto C8 |
| Max Depth of Cut (AP) | 14.5 mm |
| Insert Seat Size | 14M (490R-14…) |
| Peripheral Effective Edges | 6 (Standard Density) |
🔥 Performance Advantages
- ✔
Integrated Stability: The C8 Capto coupling provides the industry’s highest Stability and torque transmission for large-diameter cutters. - ✔
Superior Chip Control: Internal coolant through-holes are precision-aligned to each Insert Seat to facilitate rapid Chip Evacuation. - ✔
Secure Clamping Force: Innovative wedge-clamping ensures maximum Clamping Force even under high centrifugal loads during finishing.
Quick FAQ
Q: Is Capto C8 better than BT50?
A: Capto offers better Stability and repeatability, especially for multi-tasking machines requiring quick tool changes.
Q: What inserts fit this cutter?
A: It utilizes size 14M CoroMill 490 inserts, optimized for superior Chip Control in ISO P/M/K materials.
🔁 Related Systems & Recommendations
490-160Q40-14M
Large 160mm face mill version for heavy-duty CNC milling centers.
CoroMill 490 Inserts
Precision-ground inserts for optimized Chip Control and long tool life.
Capto Extension C8
High-precision extensions to maintain Stability in deep cavity milling.
Ready to Upgrade Your Production?
Get professional Machining Logic support and optimize your cutting parameters today.
Notice: All dimensions follow the Coromant Capto system standard. Contact NMT support for 3D step files.
