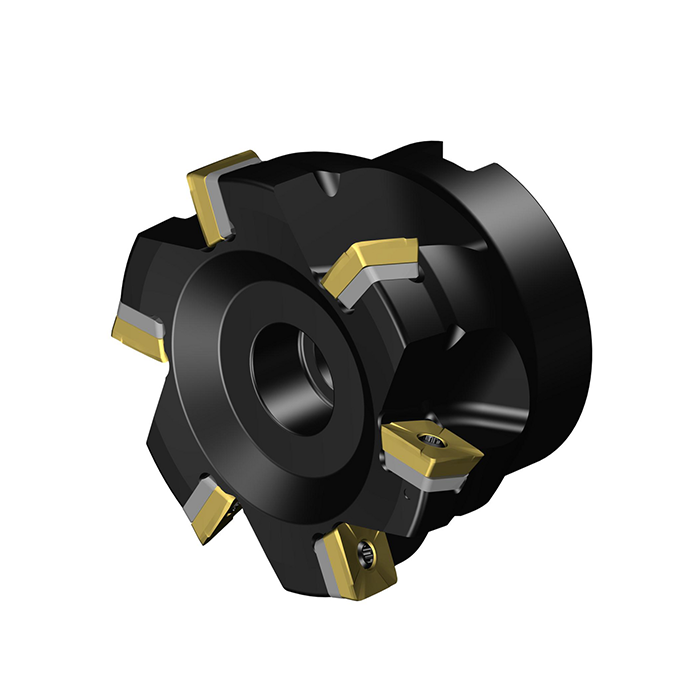

Sandvik 490-080Q27-14M CoroMill 490 Square Shoulder Face Mill
Brand: SANDVIK Coromant
Model: 490080Q2714M
Grade: 235
Coating: CVD TiCN+TiN
IC: 19.05 mm
- Premium Performance, Exceptional Value.
- Engineered for Efficiency, Dedicated to Your Output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 490080Q2714M |
| Article Number | 490080Q2714M |
| Brand | SANDVIK |
| ISO Designation | 490-080Q27-14M |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 490080Q2714M |
| Article Number | 490080Q2714M |
| Brand | SANDVIK |
| ISO Designation | 490-080Q27-14M |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |
Sandvik 490-080Q27-14M CoroMill 490
Interface: Q27
High Precision 90°
ISO P/M/K/H
Professional Machining Logic
The 490-080Q27-14M is a versatile 80mm face milling cutter engineered for medium-to-heavy shoulder milling operations. Its Machining Logic is optimized for CNC vertical and horizontal machining centers, providing a perfect balance between metal removal rate and tool Stability. Utilizing the 14M Insert Seat geometry, this cutter ensures high Clamping Force, which is critical for maintaining surface integrity during high-feed milling. Whether machining alloy steel or hardened materials, the tool’s structural integrity suppresses harmonics, resulting in extended carbide tool life and consistent 90-degree square shoulders.
⚙ Technical Specifications
| Technical Parameter | Detailed Value |
|---|---|
| Cutting Diameter (DC) | 80 mm |
| Arbor Hole Diameter (DCON) | 27 mm |
| Max Depth of Cut (AP) | 14.5 mm |
| Compatible Insert Seat | Size 14M (490R-14…) |
| Effective Flutes | 5 (Standard Pitch) |
🔥 Core Performance
- ✔
Exceptional Stability: The Q27 arbor interface provides a robust mounting base for maximum Stability under radial pressure. - ✔
Optimized Chip Evacuation: Deep chip gullets are paired with precision-directed coolant to ensure smooth Chip Evacuation. - ✔
Reinforced Insert Seat: High-alloy body steel ensures the Clamping Force remains reliable during heavy roughing.
Technical FAQ
Q: Is this suitable for high-speed finishing?
A: Yes, the 490 series is designed for both roughing and finishing, provided that Stability is maintained.
Q: Can I use different insert grades?
A: Absolutely. Sandvik offers various grades for optimized Chip Control in specific ISO materials.
🔁 Related Systems & Recommendations
490-160Q40-14M
Large-scale 160mm version for heavy industrial milling.
490-040A32-08M
Compact 40mm version for light-duty CNC operations.
CoroMill 490 Inserts
Size 14M carbide inserts for various Chip Control needs.
Arbor Adaptors Q27
High-precision holders for maximum Clamping Force.
Insert Screws (5513)
OEM replacement screws for 14M Insert Seat security.
Optimize Your Milling Productivity
Consult with our technical experts for custom Machining Logic and parameter settings.
Notice: All dimensions follow international ISO standards. Contact NMT for official torque specifications and 2D/3D CAD data.
