Sandvik Coromant C8-R825C-AAH077A Boring Adapter
Brand: SANDVIK Coromant
Model: C8-R825C-AAH077A
Grade: 235
Coating: CVD TiCN+TiN
IC: 19.05 mm
- Premium Performance, Exceptional Value.
- Engineered for Efficiency, Dedicated to Your Output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | C8-R825C-AAH077A |
| Article Number | C8-R825C-AAH077A |
| Brand | SANDVIK |
| ISO Designation | C8-R825C-AAH077A |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | C8-R825C-AAH077A |
| Article Number | C8-R825C-AAH077A |
| Brand | SANDVIK |
| ISO Designation | C8-R825C-AAH077A |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |

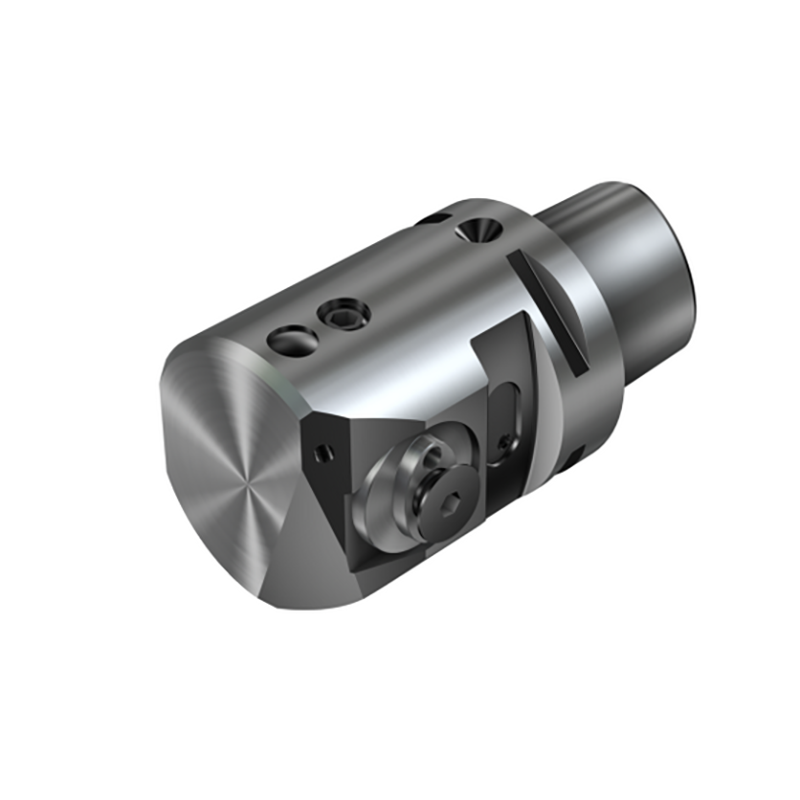

C8-R825C-AAH077A is a precision boring adapter from Sandvik Coromant designed for the CoroBore 825 modular boring system. This adapter features a Coromant Capto C8 modular connection and is engineered for stable and productive boring operations in industrial machining.
The robust construction of this adapter ensures solid rigidity and accurate alignment, which are critical for achieving high surface quality and dimensional accuracy. Its right-hand orientation makes it suitable for standard boring tasks where controlled material removal and consistent results are required. :contentReference[oaicite:0]{index=0}
Key Features
- Right-hand boring adapter for CoroBore 825 systems
- Coromant Capto C8 modular interface for secure connection
- Designed for stable boring performance in demanding applications
- Through-coolant capability for improved chip evacuation and tool life
- Compatible with a range of CoroBore 825 cartridges and heads
Typical Applications
- Precision boring on CNC machining centers
- Industrial hole finishing where accuracy is essential
- Boring in steels, cast irons and general engineering materials
- Modular tooling setups for flexible machining strategies
Compatibility & System Integration
This adapter is part of the Sandvik Coromant CoroBore modular tool system, offering flexible tooling options for holemaking. For related drilling and boring tools suitable for pre-holemaking or roughing prior to boring operations, explore our holemaking category.
Reference & Recommended Similar Models
- C8-R825C-AAI077A – alternate right-hand boring adapter with extended projection
- 825C-048A slide extension set – extension option for deeper bores
- 825L-215TC11-C8 lightweight fine boring tool – high-precision fine boring head
- 825D-107TC11U-C8M damped boring tool – vibration-controlled solution
