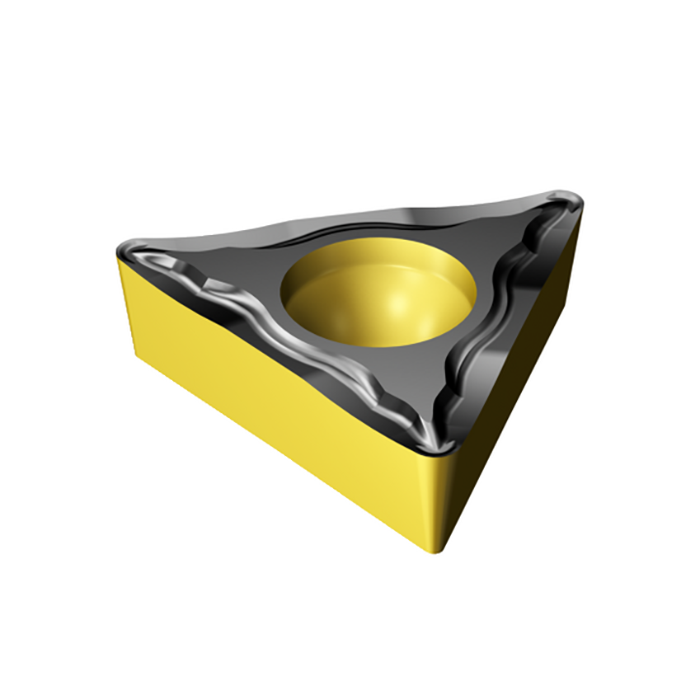

Sandvik TCMT 11 02 04-UM 4415 Carbide Turning Insert for Precision CNC Turning
Brand: SANDVIK Coromant
Model: TCMT110204-UM4415
Grade: 235
Coating: CVD TiCN+TiN
IC: 19.05 mm
- Premium Performance, Exceptional Value.
- Engineered for Efficiency, Dedicated to Your Output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | TCMT110204-UM4415 |
| Article Number | TCMT110204-UM4415 |
| Brand | SANDVIK |
| ISO Designation | TCMT |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | TCMT110204-UM4415 |
| Article Number | TCMT110204-UM4415 |
| Brand | SANDVIK |
| ISO Designation | TCMT |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |
The Sandvik TCMT 11 02 04-UM 4415 turning insert is a high-performance carbide insert designed for precision CNC turning operations. Featuring a UM chipbreaker geometry and grade 4415 carbide substrate, this insert delivers excellent chip control, low cutting forces and consistent surface finish during finishing and light to medium turning of steel and cast iron. It is widely used in industrial CNC lathe applications where stability, tool life and machining reliability are critical.
Key Features
- ✔ TCMT triangular turning insert with three effective cutting edges
- ✔ UM chipbreaker optimized for smooth chip evacuation
- ✔ Carbide grade 4415 for balanced wear resistance and toughness
- ✔ Suitable for finishing and semi-finishing CNC turning
- ✔ Stable cutting performance with reduced vibration
- ✔ Consistent surface quality in continuous and interrupted cuts
Machining Applications
- Precision CNC turning of carbon steel and alloy steel
- Turning and profiling of cast iron components
- External and internal CNC lathe operations
- Finishing and light roughing with controlled chip formation
- Industrial metal cutting requiring low cutting resistance
Tool Categories
This turning insert is commonly applied in CNC machining setups classified under
Turning tool systems.
Recommended Similar Models
- Sandvik TCMT 11 02 04-UM 4415 – Standard UM geometry for stable finishing and general turning.
- Sandvik TCMT 11 02 04-UF 4415 – Alternative chipbreaker for lighter cutting and improved chip breaking.
- Sandvik TCMT 11 02 08-UM 4415 – Larger nose radius option for improved surface finish.
- Sandvik TCMT 11 02 04-UM 4425 – Higher toughness grade for heavier cutting conditions.
- Sandvik DCMT 11 T3 04-UM 4415 – Diamond-shaped insert for profiling and finishing operations.
Technical Confirmation
⚙ For optimal machining performance, please confirm cutting parameters, workpiece material compatibility and toolholder selection before use. 📞 Our technical team can support CNC compatibility checks, turning parameters and application suitability for the Sandvik TCMT 11 02 04-UM 4415 turning insert.
Product images are for reference only. Actual appearance may vary depending on production batch and tooling configuration.
