Sandvik DCMT11T304PM 4415 Turning Insert
Brand: SANDVIK Coromant
Model: DCMT11T304-PM4415
Grade: 235
Coating: CVD TiCN+TiN
IC: 19.05 mm
- Premium Performance, Exceptional Value.
- Engineered for Efficiency, Dedicated to Your Output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | DCMT11T304-PM4415 |
| Article Number | DCMT11T304-PM4415 |
| Brand | SANDVIK |
| ISO Designation | DCMT |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | DCMT11T304-PM4415 |
| Article Number | DCMT11T304-PM4415 |
| Brand | SANDVIK |
| ISO Designation | DCMT |
| EAN Code | 10621144 |
| Grade / Material | 235 |
| Substrate | HC |
| Coating | CVD TiCN+TiN |
| Number of Cutting Edges | 2 |
| IC Diameter | 19.05 mm |
| Insert Shape | Rhombic 80 |
| Insert Length | 17.7439 mm |
| Cutting Direction | Neutral |
| Diameter D1 | 7.925 mm |
| Weight | 0.0262 kg |
| CBMD Code | HR |
| SSC Code M | 19 |
| SSC Code N | 3/4 |
| AN Angle | 0 ° |
| Fixing Method | Cylindrical fixing hole |
| Cutting Type | roughing |

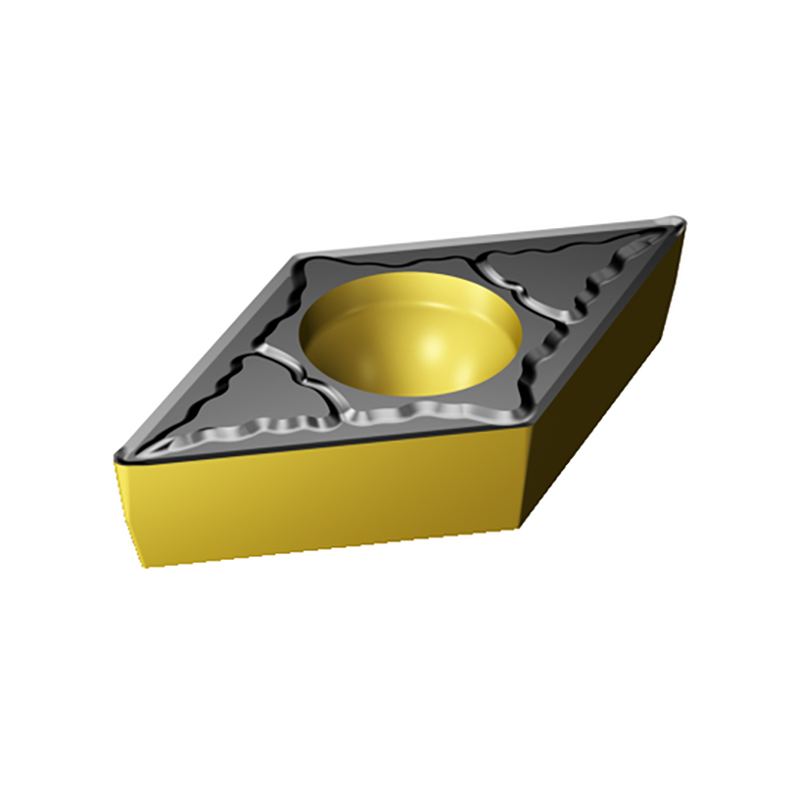

The Sandvik DCMT 11 T3 04-PM 4415 turning insert is a diamond-shaped indexable insert from the CoroTurn 107 series, designed for medium to finishing turning operations. It features a neutral cutting direction and a positive medium chipbreaker, delivering stable cutting performance and good surface finish in general turning applications.
This insert is manufactured from high-quality carbide and coated using a CVD process with TiCN, Al2O3, and TiN layers to improve wear resistance and tool life during turning of steels and cast iron under various cutting conditions.
Application Scope:
Suitable for medium and finishing turning operations, including external profiling, facing, and contouring on steels, stainless steels, and cast iron using appropriate tool holders.
Compatible Tool Holders:
Designed for use with tool holders that accept DCMT-style turning inserts. Choose a holder based on insert size, machining direction, and cutting requirements.
Workpiece Materials:
Ideal for machining steels, stainless steels, and cast iron when paired with the correct holder and cutting parameters.
This product belongs to our Turning category. For compatible tooling systems and accessories, explore our Tooling Systems category.
Ordering Information:
As a cutting tools supplier, we provide original Sandvik Coromant indexable inserts based on customer requirements. The Sandvik DCMT 11 T3 04-PM 4415 turning insert is supplied upon request. Please contact us for pricing, lead time, and availability.
Related Sandvik CoroTurn Inserts (for reference):
- Sandvik DCMT 11 T3 04-UM 4415 – alternative chipbreaker insert
- Sandvik DCMT 11 T3 04-PF 4415 – finishing oriented positive insert
- Sandvik DCMT 11 T3 04-PM 4425 – variant in 4425 grade
- Sandvik CCMT 09 T3 04-PM 4415 – similar diamond turning insert in CCMT style
